Enviroslab Perimeter Foundation Solution

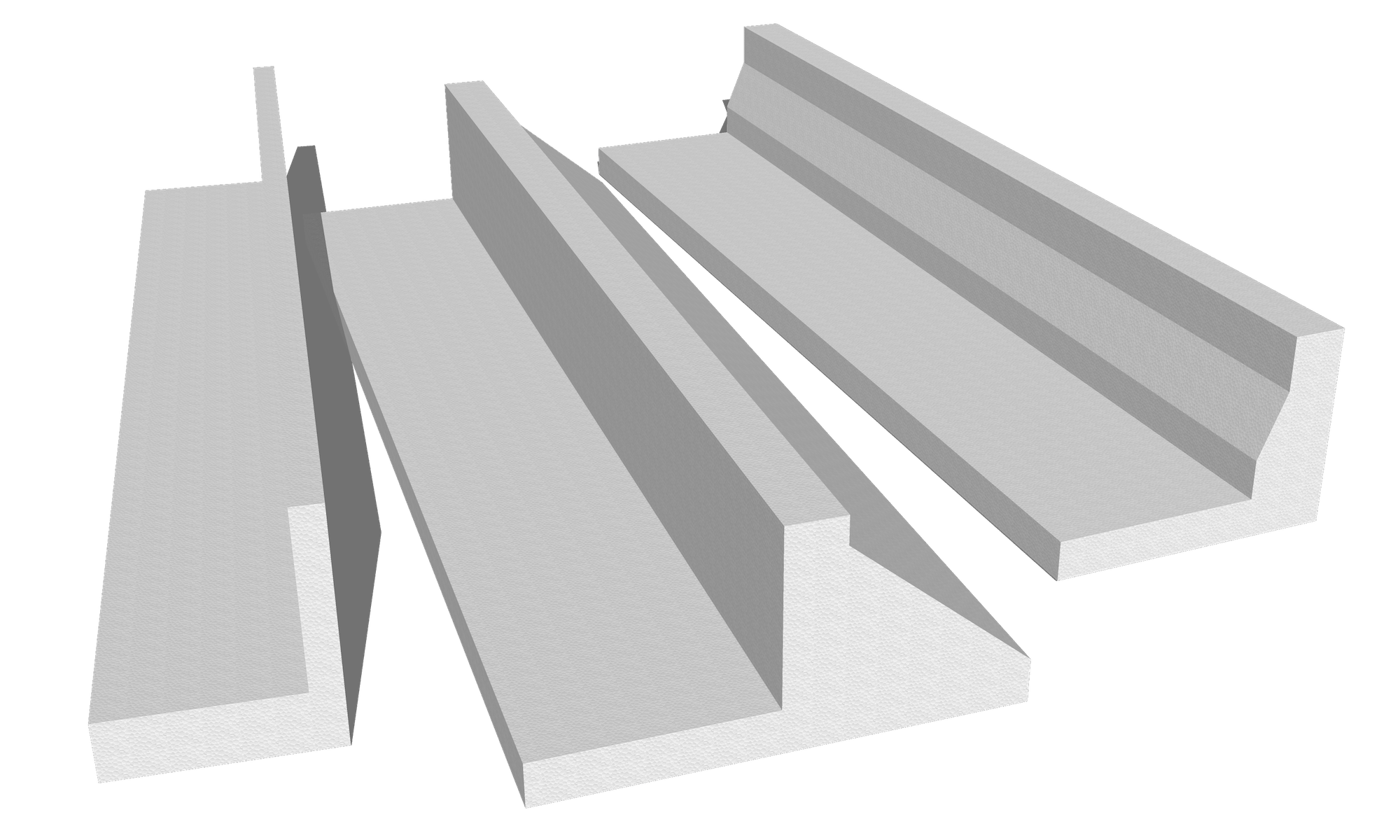

Enviroslab is a non-structural, rigid insulation form made from closed cell Expanded Polystyrene (EPS) offering cost effective performance.
Easy Installation
Durable and Lightweight
Improved Building Envelope
Reduced Thermal Bridging
Cost Effective
Improved R-Value for the Foundation Perimeter

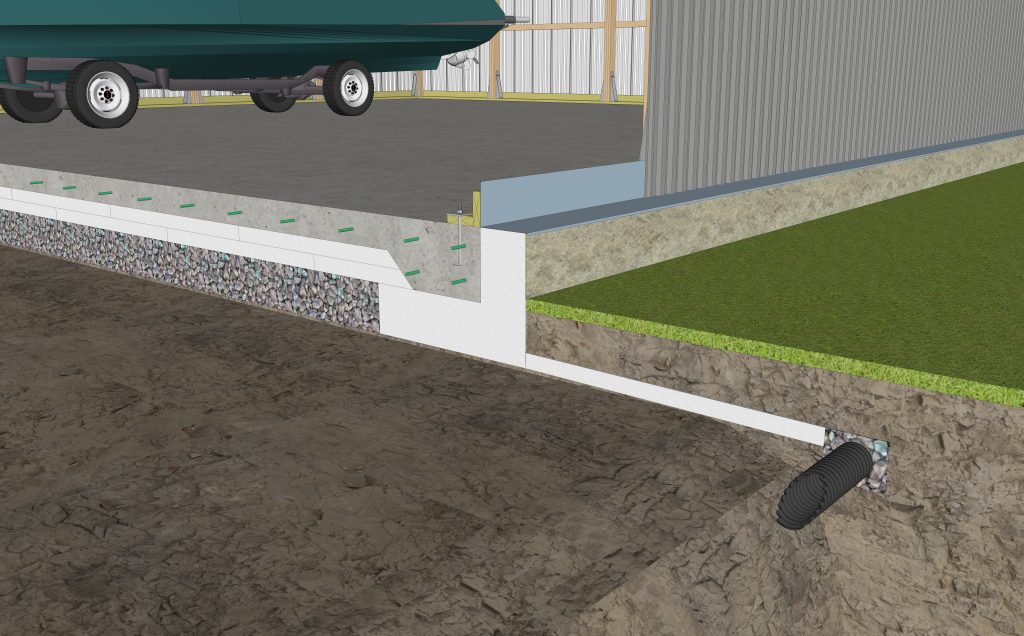

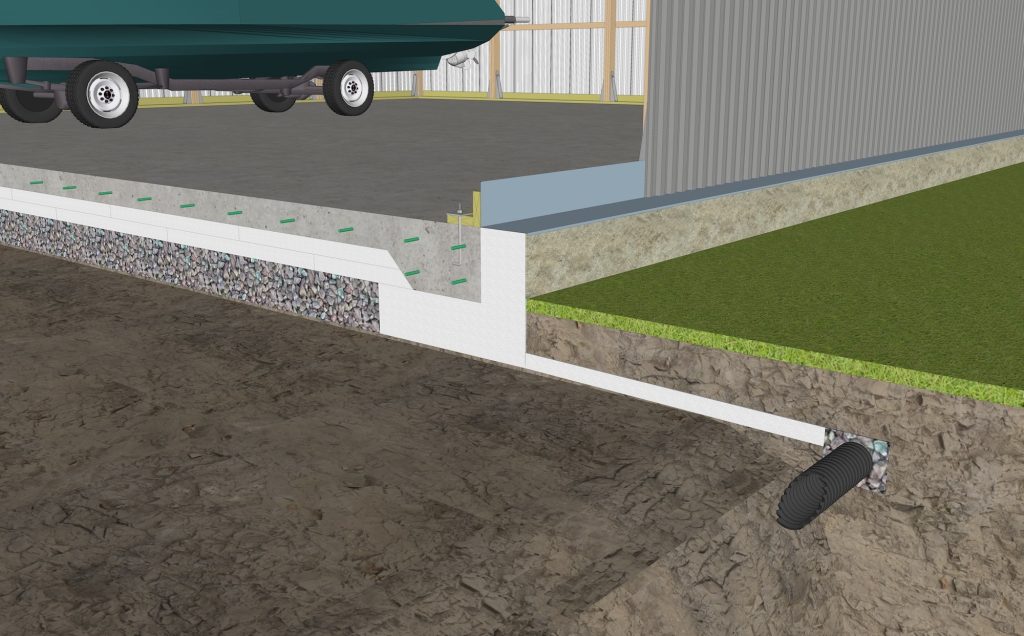

Designed to be installed as pre-cut insulated forms for shallow frost walls, reduce thermal bridging, and directly improve building envelope performance.
Enviroslab’s exceptionally low, long term, in-service water absorption properties allow it to maintain its specified thermal performance and durability when installed for slab on grade or below grade applications.
Product Features
- R-Value/inch
- R4.2, R4.3, and R4.4
- Compressive Strength
- 20 psi (138 kPa), 25 psi (172 kPa), 30 psi (207 kPa), 40 psi (276 kPa), 50 psi (345 kPa), and 60 psi (414 kPa)
- Flexural Strength
- 35 psi (242 kPa), 50 psi (345 kPa), 60 psi (414 kPa), and 75 psi (517 kPa)
Availability
Enviroslab is custom cut as per your specified project requirements. Dimensions and/or cut section drawings can be submitted for quoting, production, and delivery on site.
Standard length of Enviroslab is 8′
Download Brochure & Specs
Why use Enviroslab?
- The system combines forming, insulating, and backfilling into a single process, reducing construction time from days to hours

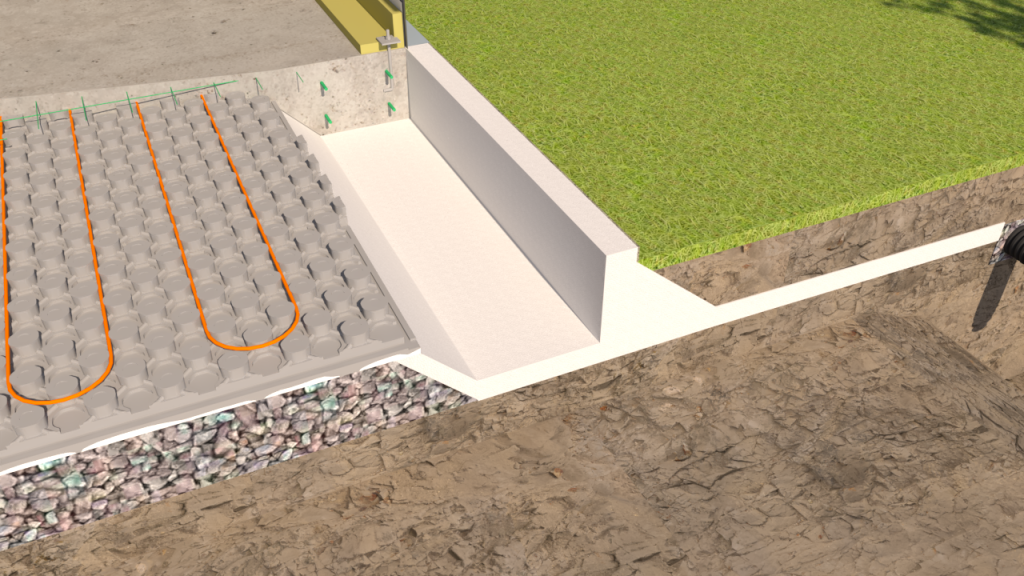

- Enviroslab is compatible with radiant floor heating systems
- Enables there to be safer job sites, and simplifies work by eliminating most traditional forming and bracing components
- The form provides a high R-value, critical for North American winters to prevent frost damage and reduce heating costs
- Forms are simple and easy to use and requires only basic tools and allows for fast crew training
